影響UHF RFID性能的變量

文章出處：深圳市銓順宏科技有限公司網責任編輯：銓順宏作者：人氣：-發表時間：2020-07-10 16:52:00【大中小】

Reader performance may be affected by the following variables, depending on the site where your Reader is being deploy

RFID讀寫器性能可能受以下變量的影響，具體取決于部署讀寫器的站點

Reader performance may be affected by the following environmental conditions:

一、RFID讀寫器性能可能受以下環境條件的影響

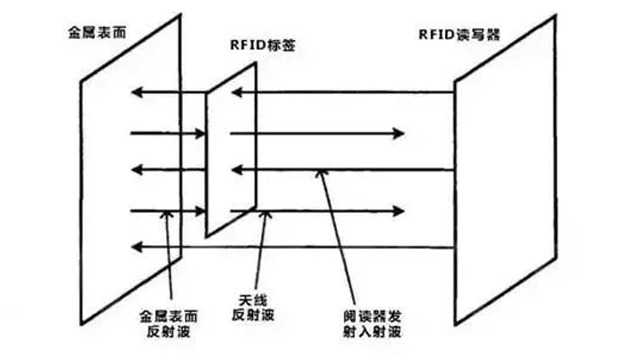

1、 Metal surfaces such as desks, filing cabinets, bookshelves, and wastebaskets may enhance or degrade Reader performance.

金屬表面，如桌子、文件柜、書架和廢紙簍可能會提高或降低讀寫器性能

2、 Antennas should be mounted far away from metal surfaces that may adversely affect the system performance.

RFID天線應安裝在遠離可能產生不利影響的金屬表面，而影響系統性能。

3、 Devices that operate at 900 MHz, such as cordless phones and wireless LANs, can degrade Reader performance.

The Reader may also adversely affect the performance of these 900 MHz devices. Moving machinery can interfere the Reader performance. Test

Reader performance with moving machinery turned off.

工作頻率為900 MHz的設備，如無繩電話和無線局域網，會降低和干擾讀寫器性能。

讀寫器也可能影響這些900兆赫設備的性能。

測試讀寫器時閉移動設備。

4、Fluorescent lighting fixtures are a source of strong electromagnetic interference and if

possible should be replaced. If fluorescent lights cannot be replaced, then keep the Reader cables and antennas away from them.

熒光照明燈具是強電磁干擾源，如果可能的話應該更換。如果熒光燈無法更換，則讓讀寫器電纜和天線遠離它們。

5、 Coaxial cables leading from the Reader to antennas can be a strong source ofelectromagnetic radiation. These cables should be laid flat and not coiled up.

從讀寫器到天線的同軸電纜可能是強電磁輻射。這些電纜應平放，不要卷起來。

Tag Considerations

二、標簽注意事項

There are several variables associated with tags that can affect Reader performance:

與RFID標簽相關的幾個變量會影響讀寫器的性能

1、 Application Surface: Some materials, including metal and moisture, interfere with tag performance. Tags applied to items made from or containing these materials may not perform as expected.

應用表面：某些材料（包括金屬和水分）會影響標簽性能。應用于由這些材料制成或包含這些材料的物品上的標簽可能無法達到預期的效果。

2、 Tag Orientation: Reader performance is affected by the orientation of the tag in the antenna field. If the antenna is circularly polarized, so it reads face-to but not edge-to.

標簽方向：讀寫器性能受標簽在天線場中的方向影響。如果天線是圓極化的，因此它是面對面而非邊緣讀取的。

3、 Tag Model: Many tag models are available. Each model has its own performance characteristics.

多種標簽型號都是可用的。每個型號都有自己的性能特征。

Multiple Readers

三、多組讀寫器

The Reader adversely affect performance of 900 MHz devices. These devices also may degrade performance of the Reader.

讀寫器對900MHz設備的性能有不利影響。這些設備也可能降低讀寫器的性能。

1、 Antennas on other Readers operating in close proximity may interfere with one another, thus degrading performance of the Readers.

其他讀寫器上的天線在近距離工作時可能相互干擾，從而降低讀寫器的性能。

2、 Interference from other antennas may be eliminated or reduced by using either one or both of the following strategies:

四、可通過使用以下一種或兩種策略來消除或減少來自其他天線的干擾

l Affected antennas may be synchronized by a separate user application using a time-multiplexing strategy.

受影響的天線可由單獨的用戶應用程序使用一種時間復用策略。

l Antenna power can be reduced by reconfiguring the RF Transmit Power setting for the Reader.

通過重新配置讀寫器的RF發射功率設置，可以降低天線功率。
