T35404W / 1.5dBi 雙饋點 RFID圓極化陶瓷天線

1.產品詳情 Product details

超高頻RFID圓極化陶瓷天線產品，其體積小、安裝簡單，外型美觀實用。主要配合固定式超高頻RFID讀寫器/UHF RFID模塊使用。目前已經被眾多項目采用，如：RFID倉庫管理，RFID物流配送，RFID軍用物資管理，RFUID車輛管理等。用途廣泛，是眾多超高頻RFID方案的首 選天線.

RFID UHF circularly polarized antenna products have the advantages of small size, simple installation, beautiful and practical appearance. It is mainly used with fixed UHF RFID reader / UHF RFID module. At present, it has been adopted by many projects, such as RFID warehouse management, RFID logistics distribution, RFID military material management, rfuid vehicle management, etc. Widely used, it is the first choice of many UHF RFID schemes.

此類天線可以依照客戶需求訂制連接線長度，常規長為120mm,SMA或者M(jìn)MCX接口可選。

It is mainly used with fixed UHF RFID reader / UHF RFID module. This kind of antenna can be customized according to the customer's requirements. The normal length is 120mm. SMA or MMCX interface is optional.

2.典型應用 Typical application

近距離一體機、發卡機、手持機等等RFID設備

RFID equipment such as close range all-in-one machine, card sending machine, hand-held machine, etc

3.產品參數

此類天線可以依照客戶需求訂制連接線長度，常規長為120mm,SMA或者M(jìn)MCX接口可選。

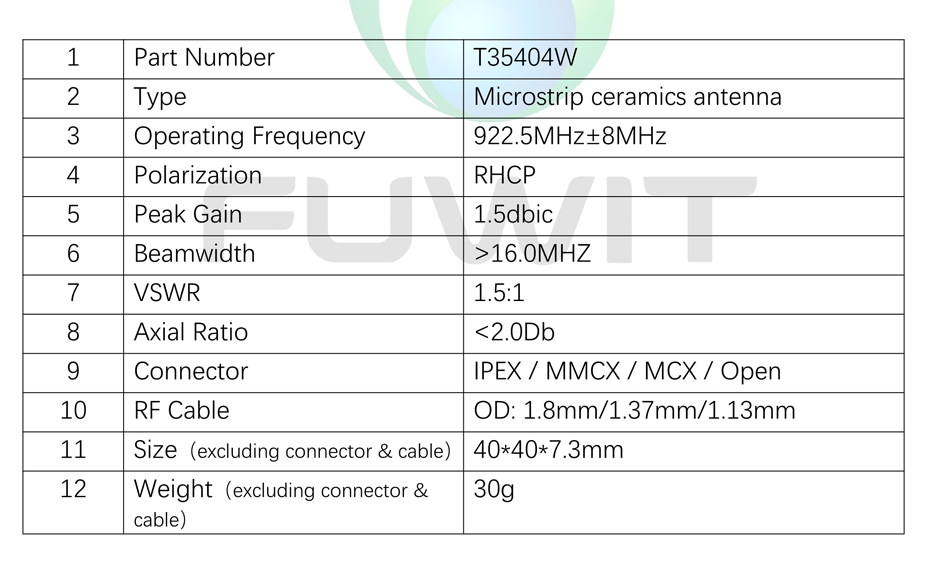

1.5dBi 雙饋點 RFID圓極化陶瓷天線T35404W參數：
