產品簡介：

    1、FU-M6-MINI-M 是一款以Thingamgic優異的M6e-Micro模組為核心集成的工業級的雙通道固定式讀寫器。FU-M6-MINI-M采用鋁壓鑄外殼，提供2路 TNC天線接口，支持2路獨立天線，提供工業專用的通信及電源接口，外觀小巧，安裝便捷，IP67防護等級適應各類工業和商業環境使用，滿足高低溫惡劣工作環境。

    2、FU-M6-MINI-M 支 持 EPC Gen2 & ISO18000-6B& 18000-6C&IP-X（18000-6D）多種UHF RFID協議（ISO18000-6B&6D，需要獲得授權才可使用）； 并支持多協議自動識別和模式切換。

    3、FU-M6-MINI-M支持FCC902-928Mhz或其他指定規范（ETSI(EU) 865.6-867.6MHz或MIC(Korea)910-914MHz或SRRC-MII(P.R.China)920-925MHz）。

    4、FU-M6-MINI-M 依照 EMC IEC61000-4 標準設計，滿足工業級寬電壓輸入模式， 電源輸入及信號均采用隔離，隔離電壓為 2KV，寬電壓輸入和工業級寬溫工作溫度，滿足超長穩定工作時間；工業級串口輸出，滿足高速自動實時數據傳輸。

    5、FU-M6-MINI-M 充分發揮了 Thingmagic RFID 模組算法優勢，其優異的標簽芯片兼容性，支持 Alien H3 、Impinj M 系列、NXP G2x* & G2i*系列 、ID Cool Log 標簽芯片，標簽兼容性行業唯一性。支持多協議包括 EPC Gen2 &ISO 18000-6C、EPC ISO 18000-6B、IP-X 多種 RFID 協議標準。

    6、FU-M6-MINI-M 全面支持 ThingMagic Mercury API 嵌入式操作系統，提供.NET 和 Java 的 SDK ，可以輕松的自定義接口，從而對閱讀器進行所需要的控制。

    7、FU-M6-MINI-M 支持通過網絡和串口進行固件升級，并支持二次開發。

    1. FU-M6-MINI-M is an industrial-grade dual-channel fixed reader/writer integrated with the excellent M6e-Micro module of Thingamgic. FU-M6-MINI-M adopts aluminum die-casting shell, provides two TNC antenna interfaces, supports two independent antennas, and provides industrial communication and power supply interfaces. It is compact in appearance and convenient to install. IP67 protection level is suitable for various industrial and commercial environments, and meets the harsh working environment of high and low temperature.

    2. FU-M6-MINI-M supports various UHF RFID protocols (ISO 18000-6B & 18000-6C&IP-X (18000-6D)); And supports multi-protocol automatic identification and mode switching.

    3. FU-M6-MINI-M supports FCC902-928Mhz or other specified specifications (ETSI(EU) 865.6-867.6MHz or MIC(Korea)910-914MHz or SRRC-MII(P.R.China)920-925MHz).

    4. FU-M6-MINI-M is designed according to EMC IEC61000-4 standard, which meets the industrial wide voltage input mode. The power input and signal are isolated, with an isolation voltage of 2KV, wide voltage input and industrial wide temperature working temperature, which meets the long and stable working time; Industrial-grade serial port output meets high-speed automatic real-time data transmission.

    5. FU-M6-MINI-M gives full play to the algorithmic advantages of Thingmagic RFID module, and its excellent tag chip compatibility supports Alien H3, Impinj M series, NXP G2x* & G2i* series and ID Cool Log tag chips, which is unique in the tag compatibility industry. Support multiple protocols including EPC Gen2 &ISO 18000-6C, EPC ISO 18000-6B, IP-X and other RFID protocol standards.

    6. FU-M6-MINI-M fully supports the embedded operating system of ThingMagic Mercury API, provides SDK of. NET and Java, and can easily customize the interface, so as to control the reader as needed.

    7. FU-M6-MINI-M supports firmware upgrade through network and serial port, and supports secondary development.

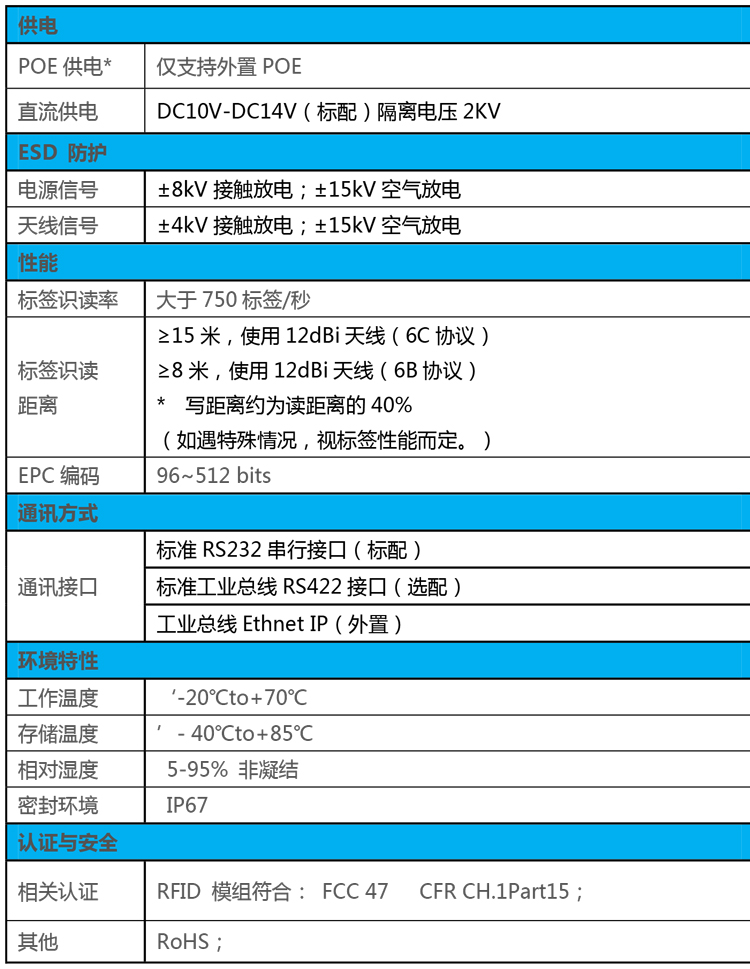

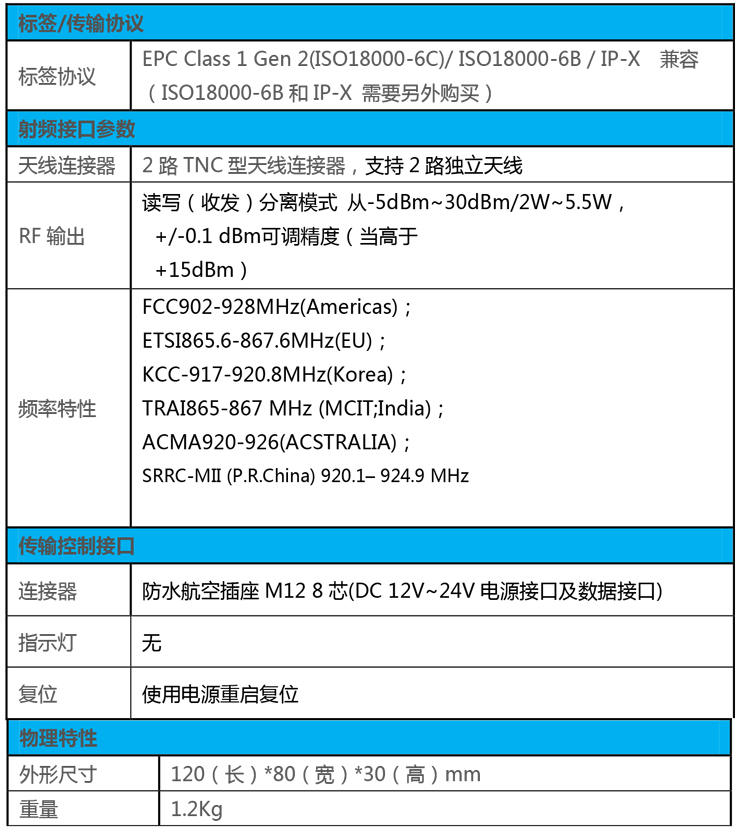

產品參數：
