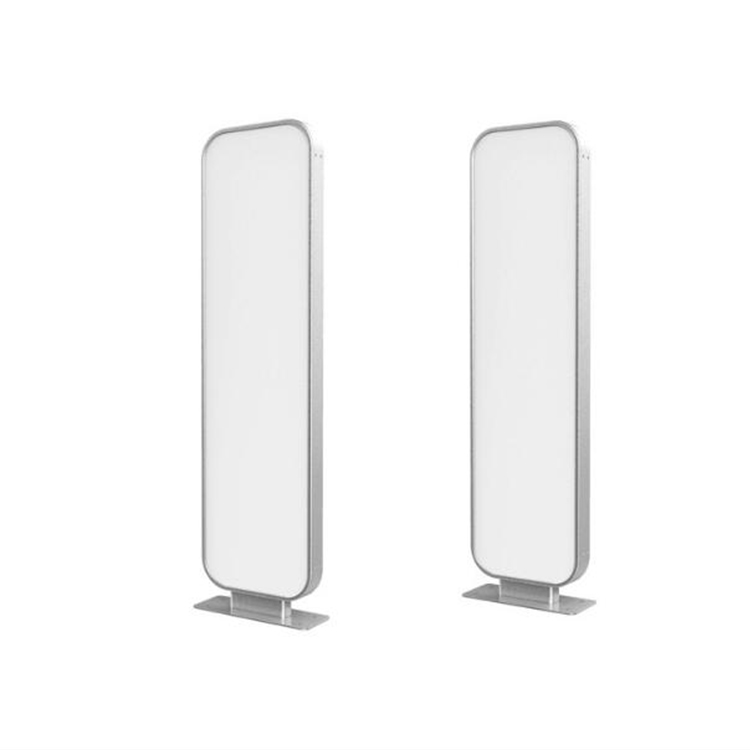

一、產品介紹：

    FU-TD04 超高頻(UHF)RFID門禁系統支持EPC C1 G2（ISO18000-6C）協議，支持服務器模式實現多通道控制功能，超高頻RFID通道門禁內部集成高增益天線組、基于ThingMagic的高速讀寫器及控制模組，擁有高速讀取標簽性能和良好的讀寫區域控制能力，提供標準RS232或RJ45接口，方便連接軟件平臺。超高頻(UHF)RFID門禁系統特別適用于各類物流倉儲、圖書檔案、人員考勤管理等細分領域的應用。

    FU-TD04 UHF RFID access control system supports EPC C1 G2(ISO18000-6C) protocol and server mode to realize multi-channel control function. The UHF RFID access control system integrates high-gain antenna group, high-speed reader and control module based on ThingMagic, which has high-speed tag reading performance and good read-write area control ability, and provides standard RS232 or RJ45 interface for easy connection to software platforms. Ultra-high frequency (UHF)RFID access control system is especially suitable for all kinds of logistics warehousing, books and archives, personnel attendance management and other sub-fields.

二、產品功能：

• 自主知識產權設計；
  Independent intellectual property design;


• 支持服務器模式實現多通道控制功能；
  Support server mode to realize multi-channel control function;


• 支持EPC C1 G2（ISO18000-6C）協議；
  Support EPC C1 G2(ISO18000-6C) protocol;


• 工作頻率902～928MHz（可定制865～868MHz）；
  Working frequency is 902 ~ 928 MHz (865 ~ 868 MHz can be customized);


• 輸出功率5～31.5dbm（可調）；
  Output power 5 ~ 31.5 DBM (adjustable);


• 多標簽讀取能力強，紅外觸發模式下漏讀率低于1%；
  Multi-tag reading ability is strong, and the missing reading rate is less than 1% in infrared trigger mode;


• 天線特別設計，實現水平面窄波束設計，門禁覆蓋區域準確，無盲點；
  The antenna is specially designed to realize the narrow beam design in the horizontal plane, and the access control coverage area is accurate without blind spots;


• 內置報警燈和蜂鳴器，報警靈敏，安全可靠；
  Built-in alarm lamp and buzzer, sensitive alarm, safe and reliable;


• RFID門禁擺放距離更加寬闊，最遠可達2.2m
  The distance of RFID access control is wider, up to 2.2m


• 可選內置3路紅外運動傳感器，用戶可以用來識別進出方向；
  Optional built-in 3-way infrared motion sensor, which users can use to identify the direction of entry and exit;


• 可選LED顯示器，顯示標簽數量；
  Optional LED display, showing the number of labels;


• 可選新標簽讀取提示功能；
  Optional new label reading prompt function;


• 外觀時尚，組裝簡便

        Fashionable appearance and simple assembly.

三、產品規格：

• 尺寸：1371×370×69mm（每片）
  Size: 1371×370×69mm (each piece)


• 重量：22KG（每片）
  Weight: 22KG (per tablet)


• 工作頻段：902MHz～928MHz
  Working frequency band: 902 MHz ~ 928 MHz


• 符合標準：ISO18000-6C
  Compliance with standards: ISO18000-6C


• 工作溫度：-20℃～60℃
  Working temperature:-20℃ ~ 60℃


• 存儲溫度：-30℃～70℃
  Storage temperature:-30℃ ~ 70℃


• 環境濕度：5%～95%RH，無凝露
  Environmental humidity: 5% ~ 95% RH, without condensation.


• 供電電源：AC220V±10%47～63Hz
  Power supply: AC 220 V 10% 47 ~ 63 Hz


• 整機功耗：約45W
  Power consumption of the whole machine: about 45W


• 通訊接口：RJ45、RS232
  Communication interface: RJ45, RS232


• 每個通道門禁推薦寬度：0.8～1.5m（最大可達2.2m）
  Recommended width of access control for each channel: 0.8～1.5m (up to 2.2m).

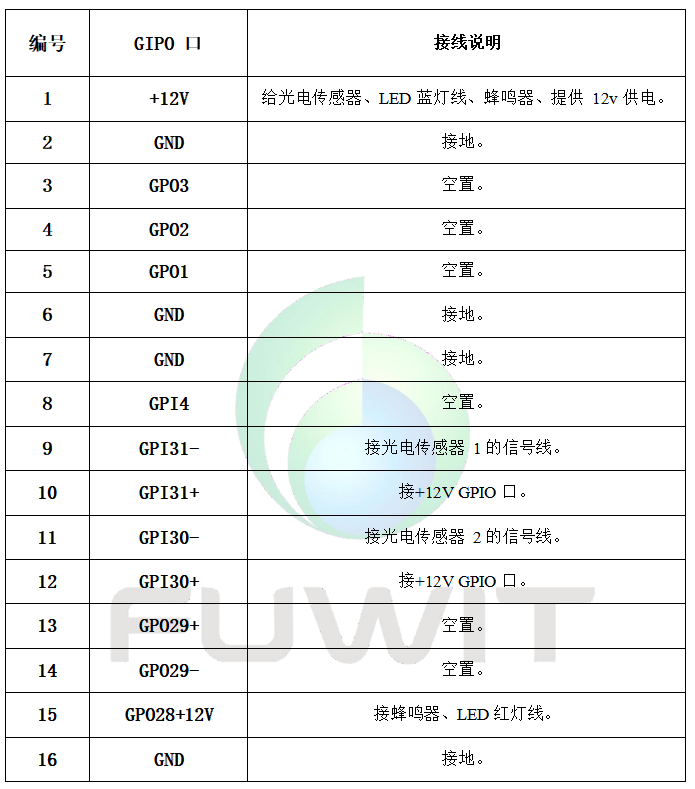

四、RFID門禁系統GPIO 控制接線說明

五、RFID通道門主副門禁組成部分：

    1）主門禁包括：門禁架1套；9dbi窄波束天線2根；Thingmagic四通道讀寫器1Pcs；電源模塊1套；以太網口1個；饋線2根；
          The main entrance guard includes: 1 set of entrance guard frame; 2 9dbi narrow beam antennas; Thingmagic four-channel reader 1Pcs；;1 set of power module; 1 Ethernet port; 2 feeders;

    2）副門禁包括：門禁架1套；9dbi窄波束天線2根；紅外對射1組；饋線2根；紅外連接線1組；

超高頻RFID門禁系統FU-TD04產品參數：
