1、FU-BC-01布草智能分揀臺，是一款應用RFID技術，實現布草快速盤點、分揀的智能工作平臺。

    2、FU-BC-01布草智能分揀臺專為醫院、酒店以及服裝行業的布草分揀、結算工作設計，適用于醫院、酒店、服裝門店，是一臺可移動的、嵌入超高頻RFID技術，整合了高集成計算機、無線通信、移動管理技術，適合多種工作環境，針對RFID布草標簽信號進行掃描、統計，可實現集成數據庫實時在線操作的智能化設備，通過對投入平臺內布草標簽的掃描，來采集傳送信息，能幫助工作人員高效完成布草的分揀和統計盤點等工作的專用智能設備，實現布草的精確化、實時化和高效率管理。

    3、FU-BC-01 支持FCC902-928Mhz或其他指定規范（ETSI(EU)865.6-867.6MHz或MIC(Korea)910-914MHz或SRRC-MII(P.R.China)920-925MHz）。

    4、FU-BC-01 充分發揮了 Thingmagic RFID 模組算法優勢，其優異的標簽芯片兼容性，支持 Alien H3 、Impinj M 系列、NXP G2x* & G2i*系列 、ID Cool Log標簽芯片，標簽兼容性行業唯一性。

    5、FU-BC-01 全面支持 ThingMagic Mercury API 嵌入式操作系統，提供.NET 和Java 的 SDK ，可以輕松的自定義接口，從而對閱讀器進行所需要的控制。

    1、FU-BC-01 linen intelligent sorting table is an intelligent working platform which uses RFID technology to realize quick inventory and sorting of linen.

    2、FU-BC-01 linen intelligent sorting table is specially designed for sorting and settlement of linen in hospitals, hotels and clothing industries. It is a movable intelligent device embedded with UHF RFID technology, which integrates highly integrated computer, wireless communication and mobile management technology, and is suitable for various working environments. It can scan and count the RFID linen label signals and realize real-time online operation of the integrated database. By scanning the linen labels put into the platform, the information can be collected and transmitted, which is a special intelligent device that can help the staff to efficiently complete the sorting and statistical inventory of linen, and realize the accurate, real-time and efficient management of linen.

    3、FU-BC-01 supports FCC902-928Mhz or other specified specifications (ETSI(EU)865.6-867.6MHz or MIC(Korea)910-914MHz or SRRC-MII(P.R.China)920-925MHz).

    4、FU-BC-01 gives full play to the advantages of Thingmagic RFID module algorithm, and its excellent tag chip compatibility supports Alien H3, Impinj M series, NXP G2x* & G2i* series, and ID Cool Log tag chips, which is unique in the tag compatibility industry.

    5、FU-BC-01 fully supports the embedded operating system of ThingMagic Mercury API, provides SDK of. NET and Java, and can easily customize the interface so as to control the reader as needed.

重要事項：

    在未得到該產品制造商授權人員指導下，請勿隨意拆裝讀寫器設備，否則可能會發生觸電、損壞設備零部件的事故。請不要重壓或撞擊讀寫器設備，以免損壞零部件或使設備運轉不正常。請確定您所使用的電源接地良好，否則聚積的靜電會損傷設備和核心 RFID 模組。

    Do not disassemble the reader without the guidance of the authorized personnel of the product manufacturer, otherwise it may cause electric shock and damage to equipment parts. Please do not press or impact the reader/writer equipment, so as not to damage parts or make the equipment run abnormally. Please make sure that the power supply you are using is well grounded, otherwise the accumulated static electricity will damage the equipment and the core RFID module.

警告：

    在生活環境中，該產品可能會造成無線電干擾。在這種情況下，需要用戶自行對其干擾采取解決措施。長時間不使用時，請關閉設備電源。

    In the living environment, this product may cause radio interference. In this case, users need to take measures to solve their own interference. Please turn off the power of the equipment when it is not used for a long time.

二、產品特點

    1、具備布草分揀、點數、盤點等功能；

    2、采用簡潔外形設計；

    3、采用物理金屬隔離，防止誤讀周圍環境的標簽；

    4、采用模塊化設計，設備主要功能模塊便于安裝和更換；

    5、采用安卓工業級觸摸一體機，操作簡便快捷，響應迅速，界面友好，實時動態聯網，

    6、完成快速信息交互，具有良好的擴充性能和極強的安全性；

    7、系統具有足夠的抗攻擊能力和快速回復能力；

    8、具有可擴展性和可維護性，系統設備通過簡單的硬件轉換可以升級

    1, with linen sorting, counting, inventory and other functions;

    2, adopt simple shape design;

    3. Physical metal isolation is adopted to prevent misreading the labels of the surrounding environment;

    4. Modular design is adopted, and the main functional modules of the equipment are easy to install and replace;

    5. Android industrial-grade touch all-in-one machine is adopted, with simple and quick operation, quick response, friendly interface and real-time dynamic networking.

    6. Complete rapid information exchange, with good expansion performance and strong security;

    7. The system has sufficient anti-attack capability and quick recovery capability; 8. It is scalable and maintainable, and the system equipment can be upgraded through simple hardware conversion.

三、產品參數：

四、其他說明

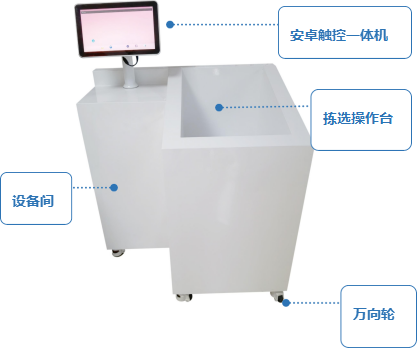

    設備外觀結構:

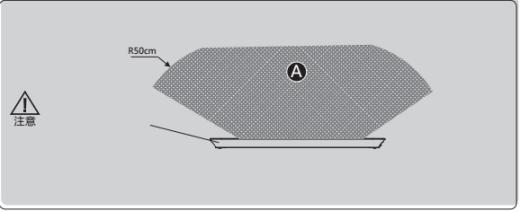

識別區域定義：

    識別區域?yàn)镽FID 讀取覆蓋區，其基本范圍參見下圖。請在使用時，將標簽放置于此區域讀取。

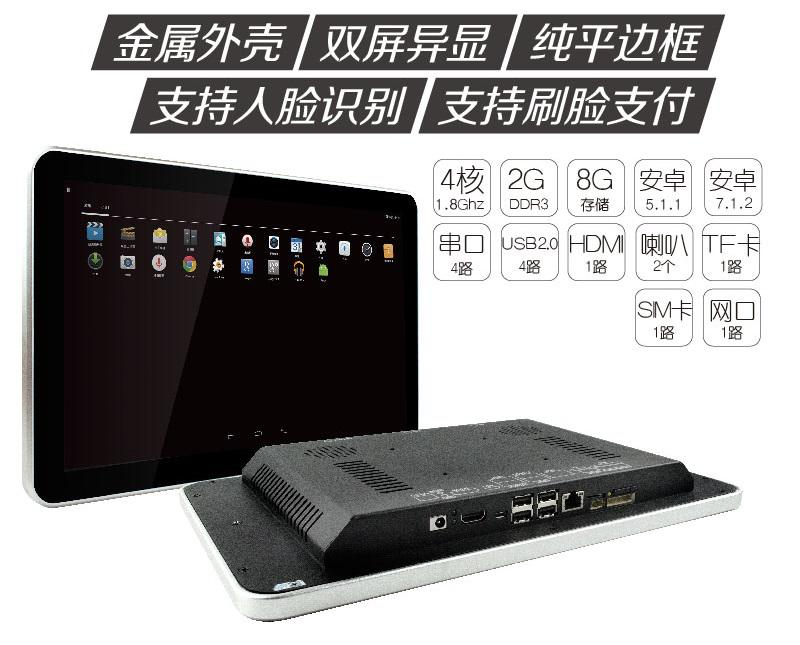

安卓觸控一體機：

    配備操作靈活的電容觸摸屏，采用全新紅外觸摸技術，觸摸定位精度高，操作實時響應，屏幕可以作為書寫的界面，通過手指或書寫筆即可實現文字書寫、繪制圖形等操作。高度穩定可靠，抗干擾性強，高透光性，使用壽命高，不怕刮傷，觸摸特性好，無需力度即可觸摸。

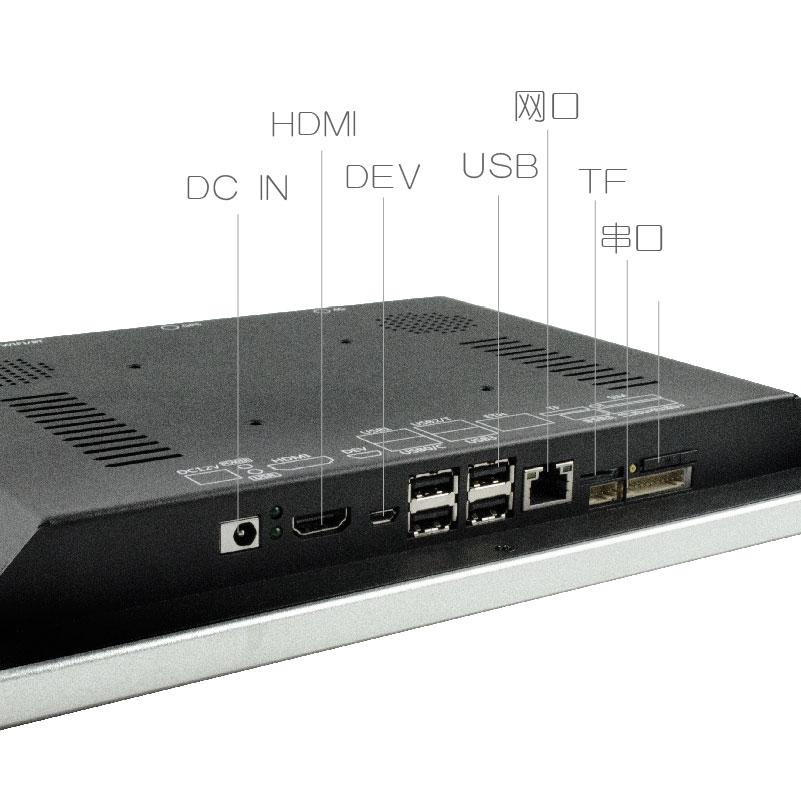

Android 操作系統，主板基于 RK3288 高性能四核應用處理器平臺， RK3288 主芯片集成四核 Cortex-A17 高性能四核 GPU，主頻最高可達1.8GHz，具備超強的計算性能、2D/3D 圖形處理能力和全高清視頻編解碼能力。支持以太網，WIFI 網絡，4G 網絡，USB ，串口等接口。

產品參數：
